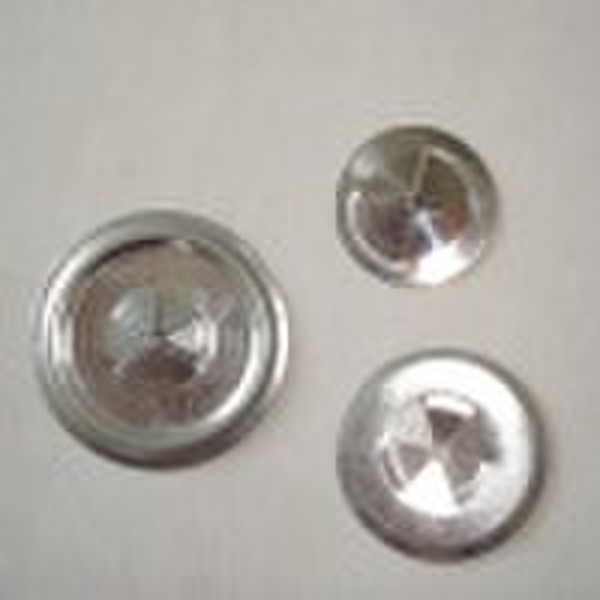

Round Self-Locking Washer

Type :WA 200WA 150WA 120WA 100Diameter2"1-1/2"1-3/16"1"Thickness.015 nom..015 nom..015 nom..015 nom.MaterialMildMildMildMildSteelSteelSteelSteelPlatingGalv.Galv.Galv.Galv.Edges/flat or beveledbeveledbeveledflatbeveledOther materialsAlum.Alum..Alum..Alum..availableS.S.S.S.S.S.S.S.Packaged per carton1000100010001000MIDWEST FASTENERS Self-Locking Washers are used in conjunction with MIDWEST FASTENERS weld pins, insul-anchors and lacing anchors to fasten insulation in place. Simply press the self-locking washer onto the pin up to the insulation until the desired position is reached. Then clip off, (or bend over) the remaining portion of pin for a permanent attachment.Both Round or Square self-locking washers are available as a matter of design or application preference. The domed, multi-lanced hole design provides for ease of locating washer on pin and positive locking. Most styles of washers are manufactured with a beveled edge to prevent the washer from cutting into the insulation facing,MIDWEST FASTENERS Self-Locking Washers are available according to the chart above and with standard I0GA, !2GA,orI4GA hole sizes off-the-shelf. Other material / plating combinations and hole sizes are available by special order.TO ORDER OR SPECIFY, GIVE :1. Product code ...................................................................WA2. Material ................................................................MS,SS,AL3. Type .................................................................150.120,1004. Diameter of pin/stud on which washer is to be used................
